Raised Deck Frame: 8 Ideas From Wood Joists to Galvanized Steel

These 8 frame ideas run from a weekend of clamping pressure-treated 2x10s to ordering a galvanized steel kit that may need a structural engineer’s sign-off, and the deciding factor is what your local code office says before you dig.

[link-whisper-related-posts]

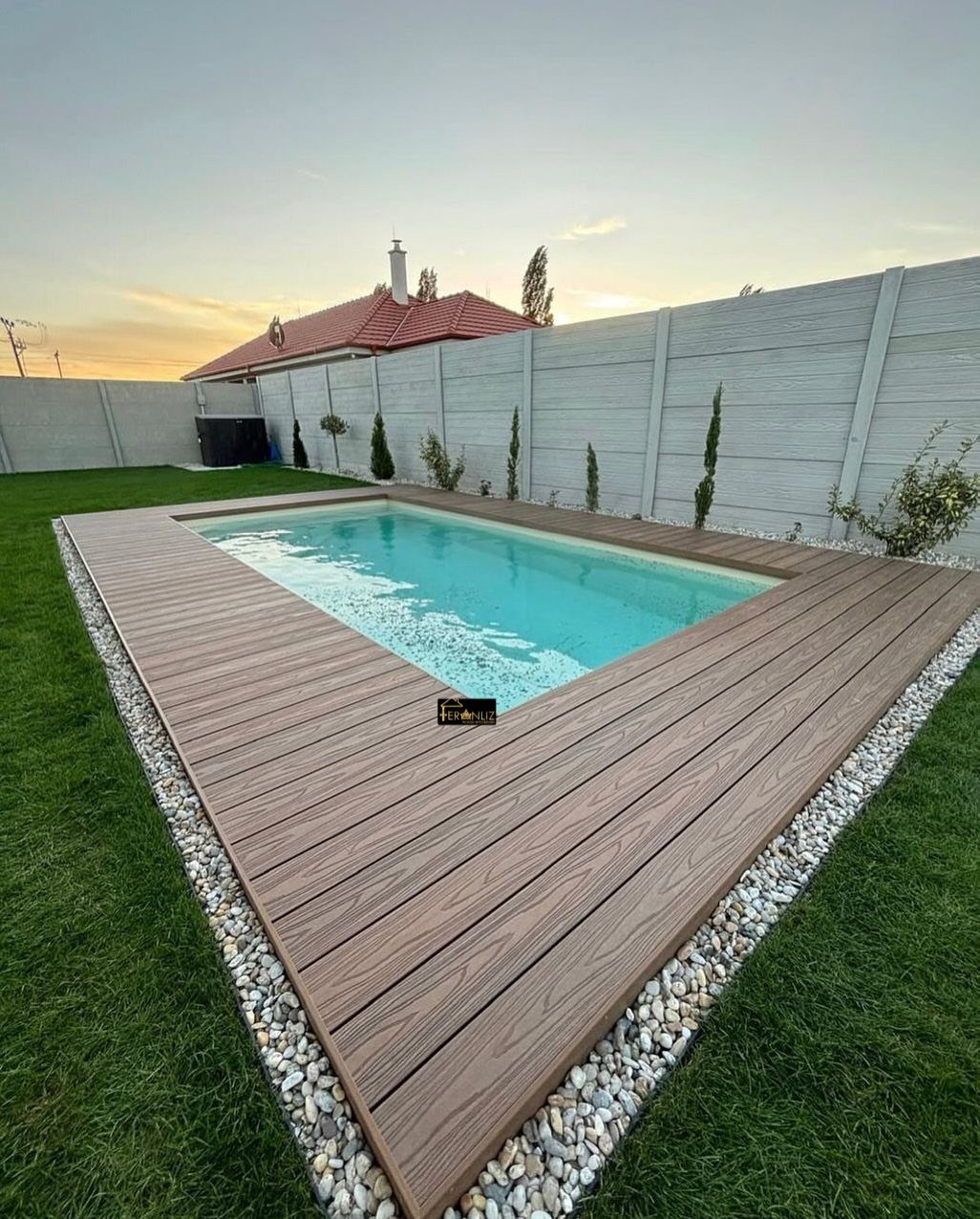

1. Decking Materials

TimberTech Driftwood composite sits on the frame, and that 30-year warranty is the kind of coverage that matters when you are spending a Saturday on your knees with a drill and hidden fasteners.

Wood costs less up front but needs sealing every couple of years; PVC shrugs off rot entirely and costs more. I would pick composite for anything close enough to a pool that splashing is a regular thing.

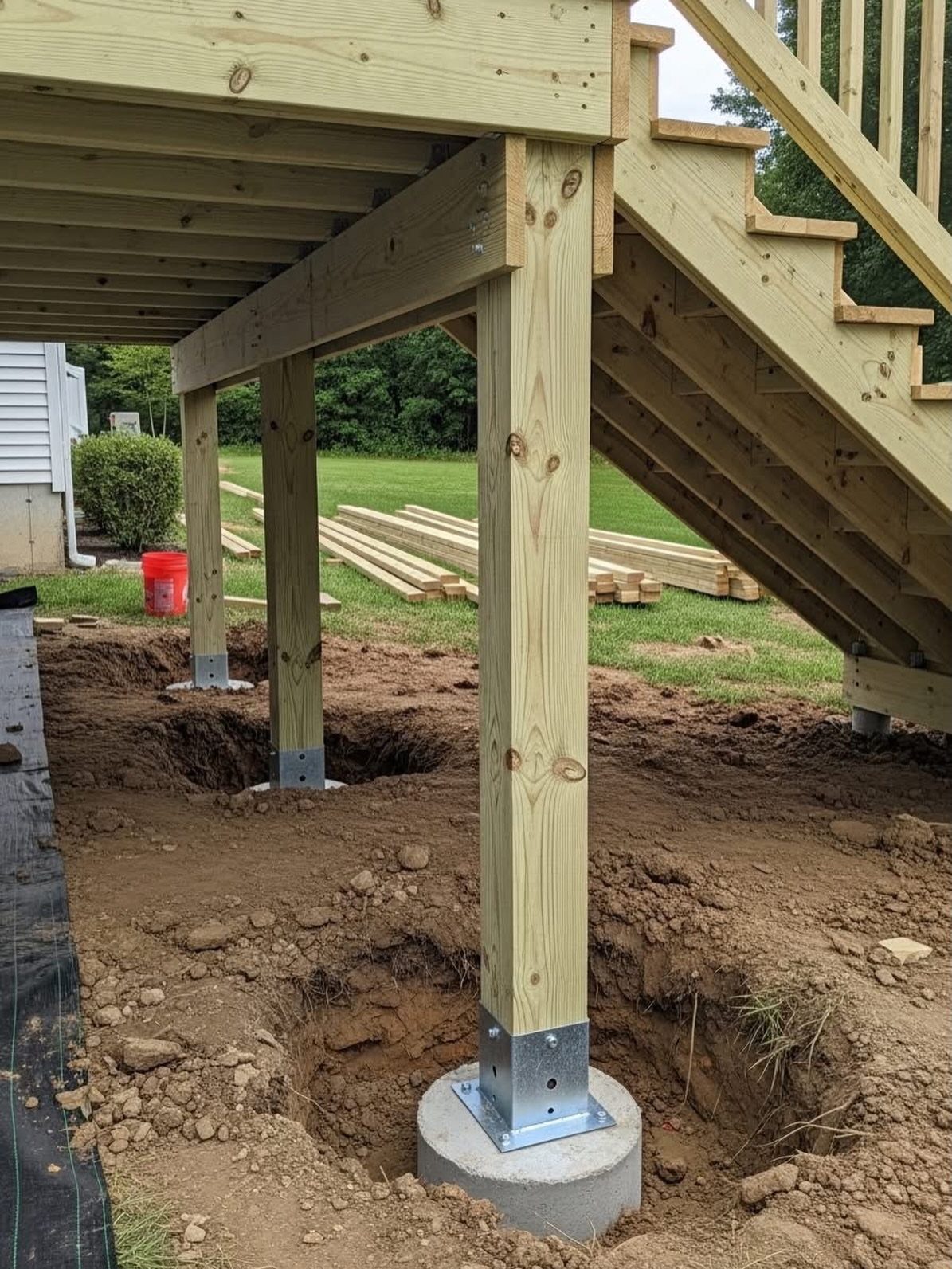

2. Footings

Concrete footings poured into dug holes or pre-formed piers dropped onto grade both work; the poured kind uses metal brackets locking the posts.

A freestanding deck, not tied to the house with a ledger, skips the headache of removing siding and flashing against your wall.

That matters more than you might think on older homes with balloon framing or ICF construction, where finding a solid rim joist to bolt into gets complicated fast.

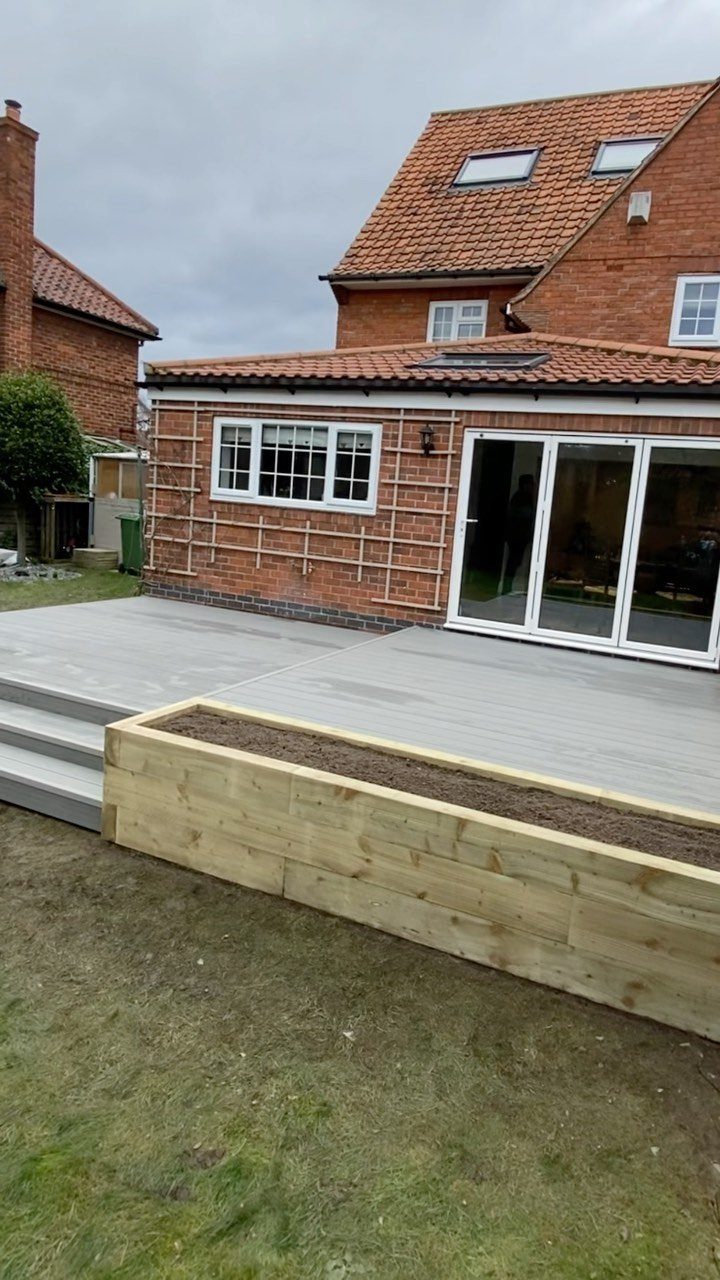

3. Steps

Steps turn a raised platform into something you actually use. Check your local code for riser height and tread depth before you cut anything; the permit inspector will measure.

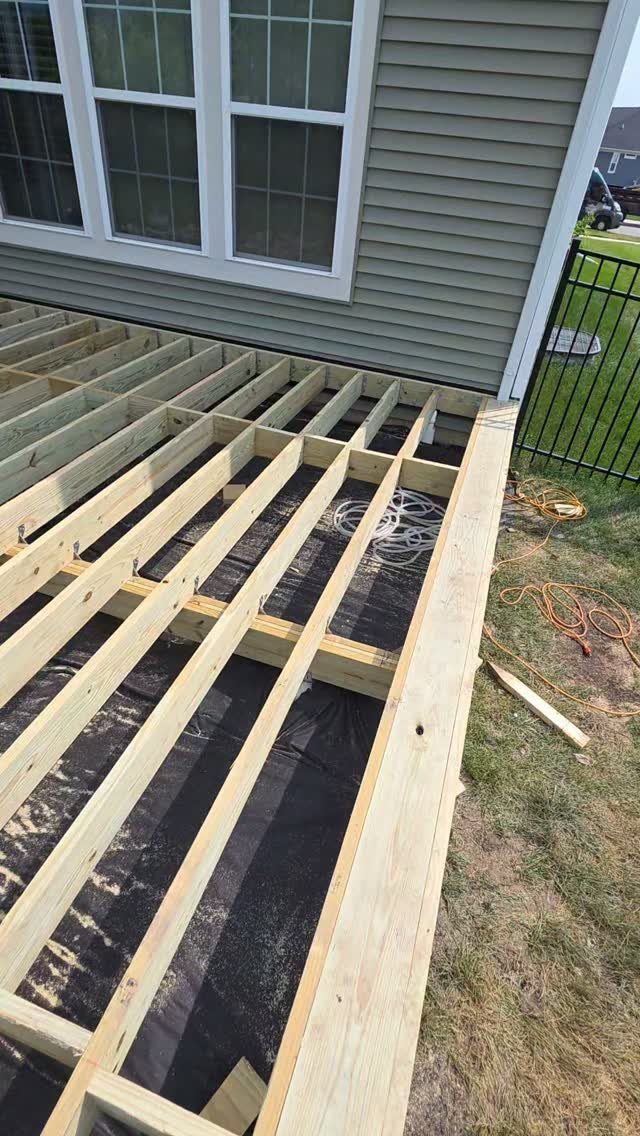

4. Joists

Joists carry everything you walk on, so direction and spacing matter more than the lumber grade. Run them perpendicular to your beams, opposite to the finished deck boards, and hang them at 16-inch centers with metal joist hangers.

The rim board caps the ends and boxes the whole frame together; nail it flush to keep the deck square against the house.

Pressure-treated 2x10s are standard for spans like this, though I have seen 2x8s used on low platforms where the load stays light.

The two beams are positioned about 10 in. from the inside and outside edges of the deck. They are sized at close to the maximum span listed in the code table for double 2x8s.

— Fine Homebuilding

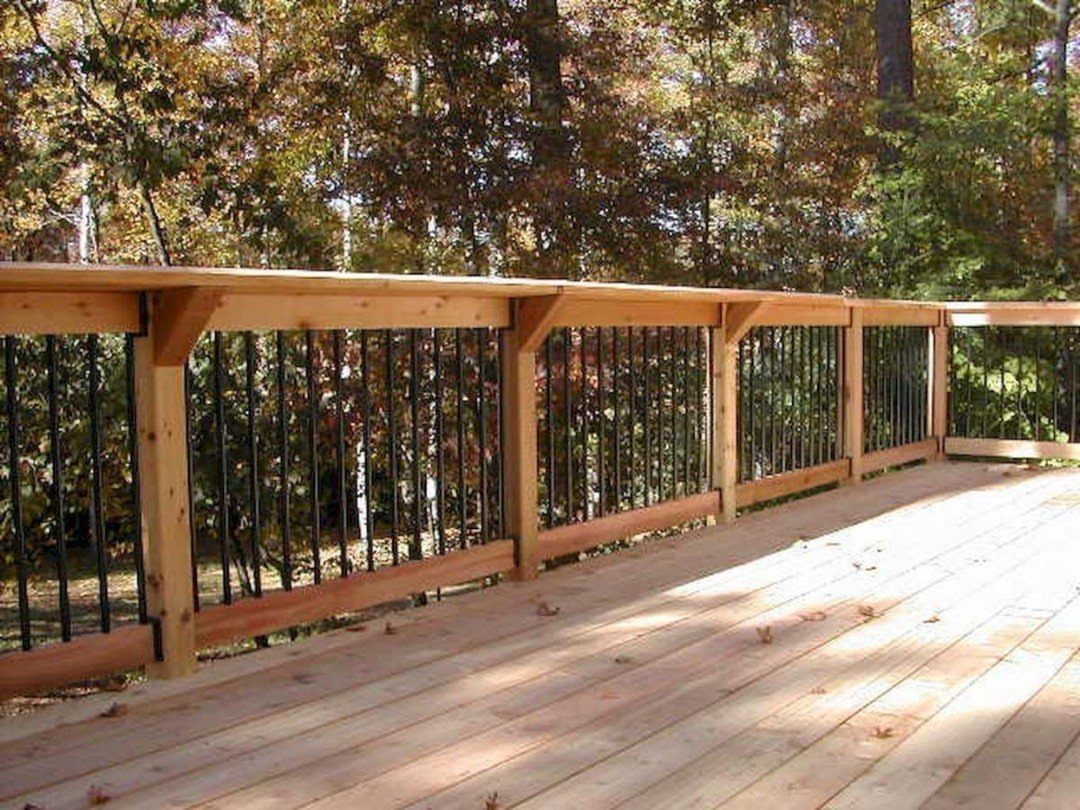

5. Railings Around the Perimeter

A perimeter railing is not optional once your deck sits high enough off the ground; code requires it, and common sense backs that up.

The photo pairs wooden posts and a wide drink rail with slim black metal balusters, a mix that reads traditional without feeling heavy.

Install posts and rail after the sub-frame is square but before you lay the final boards, since the posts drop through and fix from below.

An artificial post-and-rail system, the kind the photo hints at, saves notching around structural posts but takes a few lengths to get the hang of.

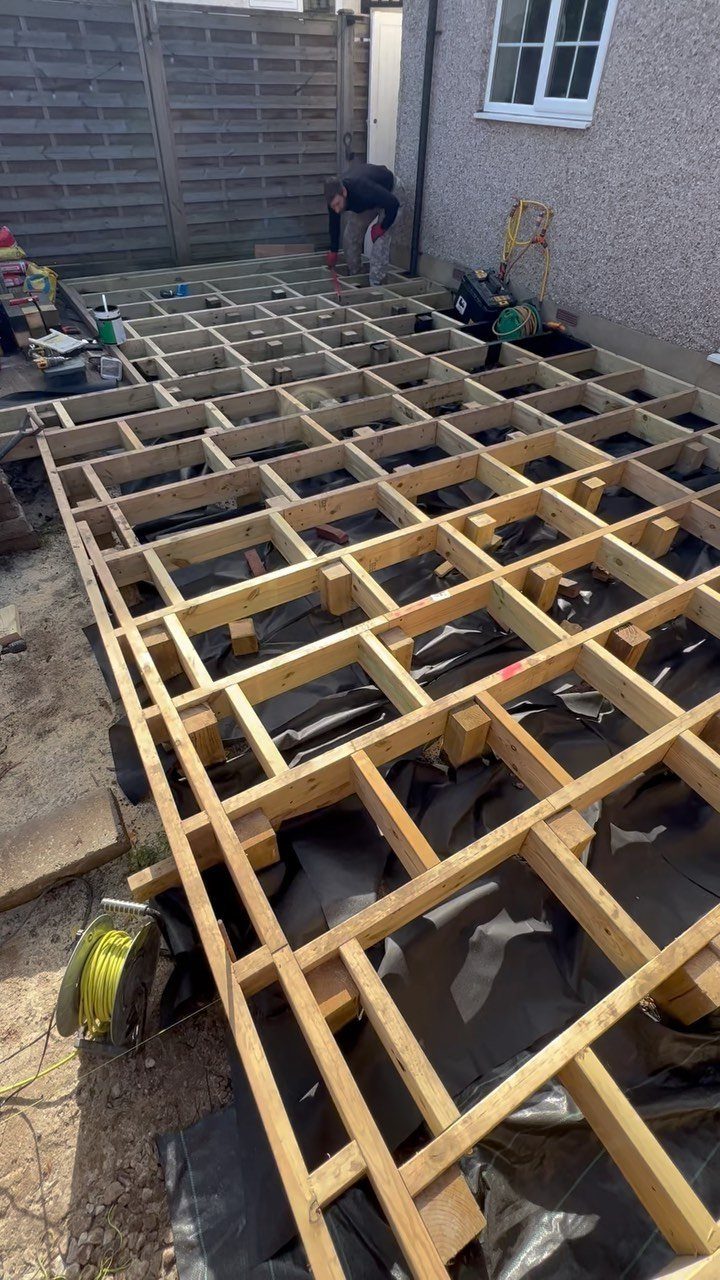

6. Timber Grid on Weed Barrier

Black landscape fabric under the whole frame buys you years of not crawling underneath with a machete. The grid laid out before the decking goes on, with gravel holding the fabric down around each post base.

Work around anything rooted that you want to keep; frame a tree with blocking between joists and leave it room to sway and thicken.

A fast-growing species will push against anything too tight within 3 seasons, so know what you are building around.

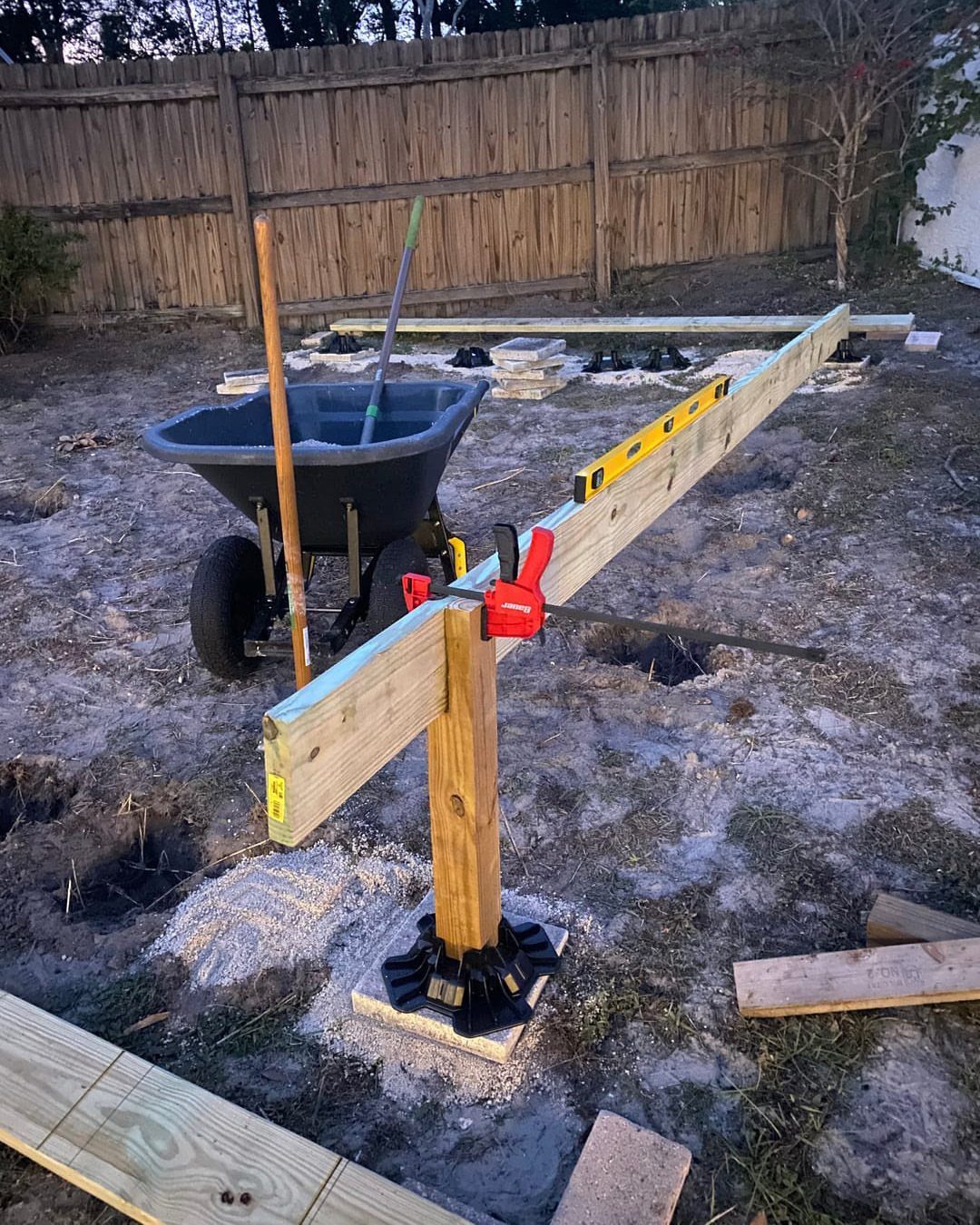

7. Clamped Support Beam on Posts

A red clamp and yellow level on a timber beam mean you are checking twice before the screws go in.

Clamp the beam to the post, set your level on top, and adjust until the bubble sits dead center. Only then do you drive the fasteners through the post and into the beam end.

Mark the beam height from your plan and measure down to set the finished deck floor; a clamp holds it in place while you check with a level.

Steel base plates bolted to concrete piers keep the post plumb while you work. I would rather spend a few minutes with a clamp than an afternoon tearing out a beam that settled crooked.

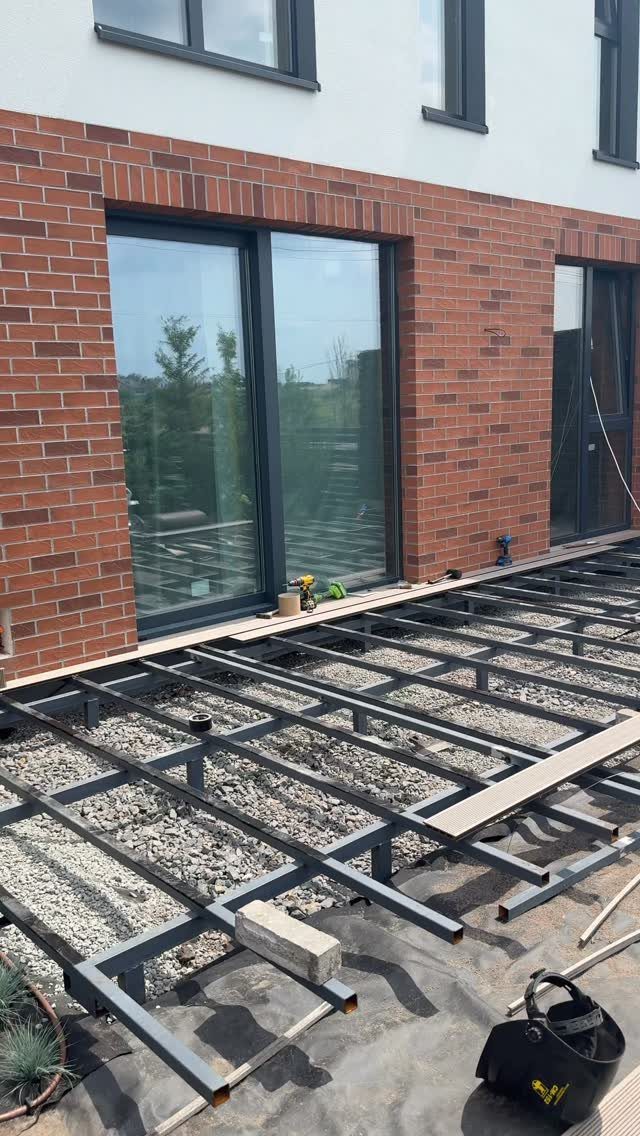

8. Metal Raised Deck Frame

Galvanized steel joists and beams bolt together over gravel, a system that keeps wood off the ground entirely.

What you get for that trouble is a frame that will not rot, warp, or host termites; it stays square and light enough for rooftop or balcony work where timber weight would strain the structure below.

Check whether your local code treats steel framing differently for span tables or grounding; some jurisdictions want a licensed structural review.

Building Codes and Permits

Call your local building department before you touch a shovel.

The inspector there will answer code questions and sign off on your plan before you cut anything, which beats finding out your beam spacing is wrong after the concrete is set.

A permit costs money upfront and paperwork, but building without one can block a future sale or force you to tear the deck down entirely.

Some towns require permits only above a certain height or square footage, so ask rather than assume.

If your deck is freestanding, not ledger-bolted to the house, the rules may differ on setback or footing depth. Check that too.

Tools Needed

You will need a circular saw for the bulk of your cuts, a drill for fasteners and brackets, a level that reads true across your longest beam, and a tape measure you trust.

A miter saw speeds up railing parts and any picture-framed border boards. A speed square keeps your crosscuts square; work gloves matter more than people admit until they have a splinter under a nail.

For the frame itself, a pneumatic nailer is not essential but it saves time on the rim board and blocking.

Rent the hole digger or auger for footings, and rent a cable avoidance tool before you dig anywhere near the house. The CAT scan costs less than hitting a gas line.

A Sawzall helps when you need to cut old posts or roots out of your way. Do not buy what you can rent for a weekend; the cement mixer alone is not worth owning unless you pour patios every year.

Cost Considerations

Labor can double the price of a finished deck, which is why handling the frame yourself matters on a tight budget. The builder marks up lumber and hardware too, so buying your own cuts out 2 layers of profit.

That said, material prices have jumped sharply in the past two years; budget at least 20% above what old blog posts or memory suggests for the same board count.

Composite decking and PVC trim held their increase longer than pressure-treated framing lumber, but nothing stayed flat.

If you are deciding between wood and composite, factor the sealing and staining costs into the wood column across the years you will own it, not just the checkout total.

Steel framing costs more upfront than pressure-treated 2x10s and may need a structural review fee in some jurisdictions, so price that permit wrinkle before you commit. Renting tools instead of buying spreads the hit across projects.

Maintenance Tips

Pick materials that match how much upkeep you will actually do, not how much you imagine doing each spring. Steel framing eliminates rot and termite risk entirely, which matters in damp climates or where Formosan termites are established.

Once the deck is built, walk it twice a year: check joist hangers for rust or looseness, especially where splash from planters or the pool hits the hardware.

Look under the rim board for water staining that means your flashing detail failed.

Gravel under the frame on landscape fabric keeps mud from holding moisture against the posts, but the fabric itself can clog and puddle after years of leaf litter; clear it when you see standing water.

Catching a soft post or a hanger pulling out early costs an afternoon. Replacing a rotted beam costs a week.
